RFID Auto Weighing System

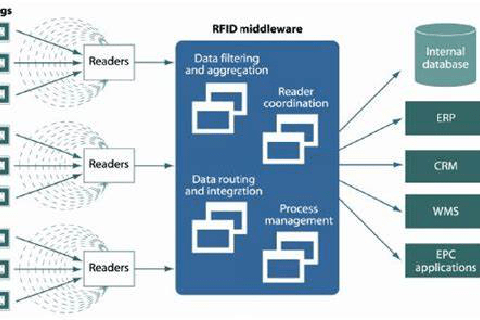

System Architecture

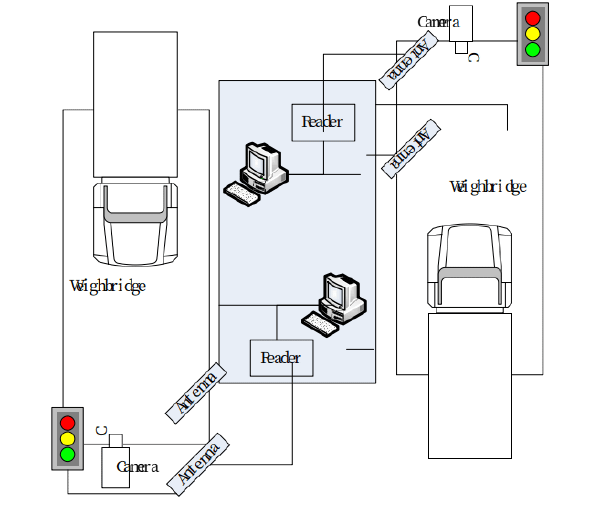

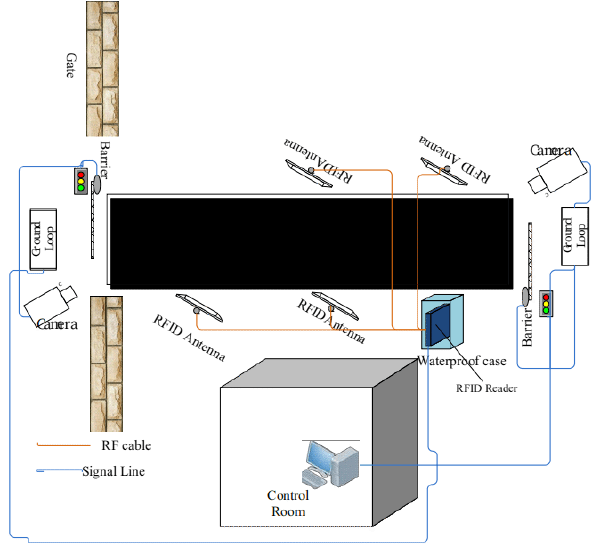

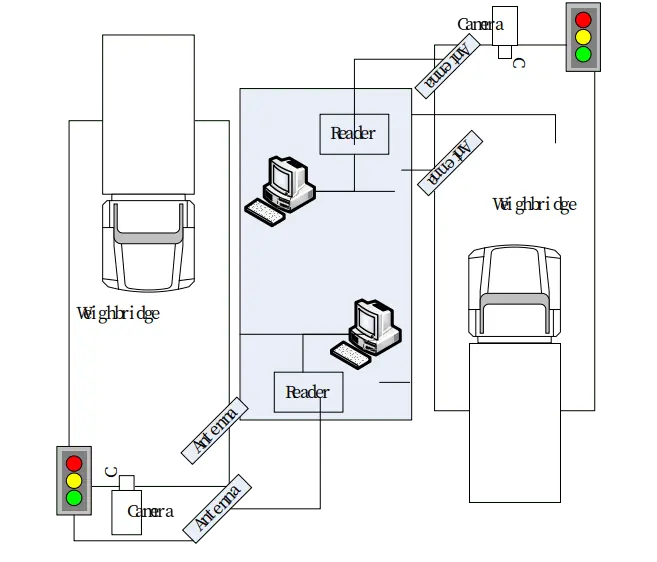

Example 1: If the weighbridge is bidirectional (as picture below), hardware proposal for each weighbridge:

1 RFID Reader+ 4 antennas, reader suitable for outdoor installation, connect 4 antennas outside, each direction has 2 antennas (in different size/ antenna gain), to assure 100% reading of different size of vehicle, antenna cable length 3m, 6m, 9m, 12m available, max 15m antenna cable length is suggested.

Example 2: If weighbridge is unidirectional (as picture below), hardware proposal for each weighbridge:

1 RFID Reader +2 RFID Antennas, RFID reader install inside control room, 2 different size of antenna to cover full size of vehicles.

System benefits

  • Reduce manual operation, save cost
  • Less than 1 min for each vehicle, save time
  • All intelligent weighing, easy to command in system

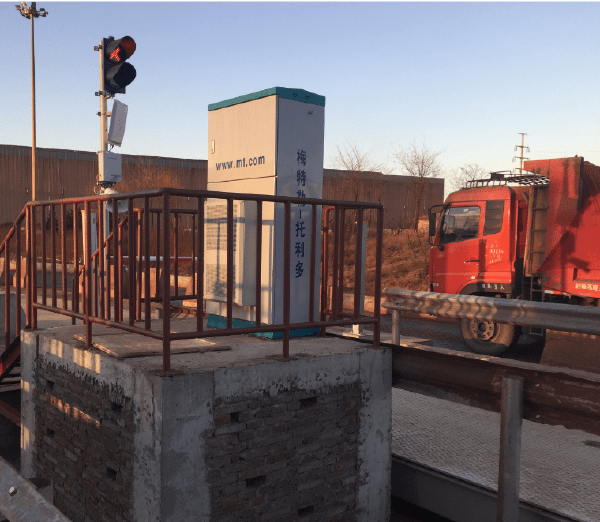

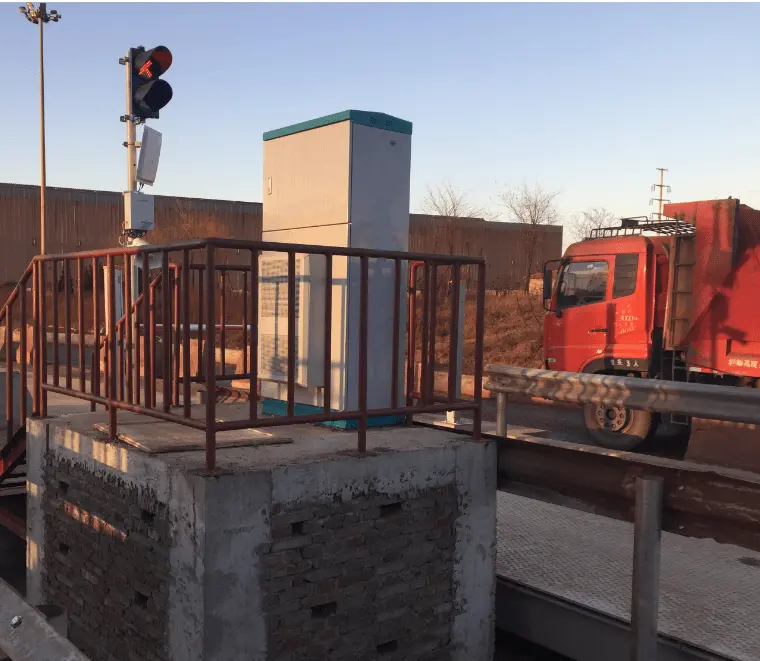

Cases pictures
