Ci-RX801 UHF RFID Android Tablet
RFID Reader
UHF
Rugged RFID
Waterproof
Asset Management
4G
Android OS
NFC RFID

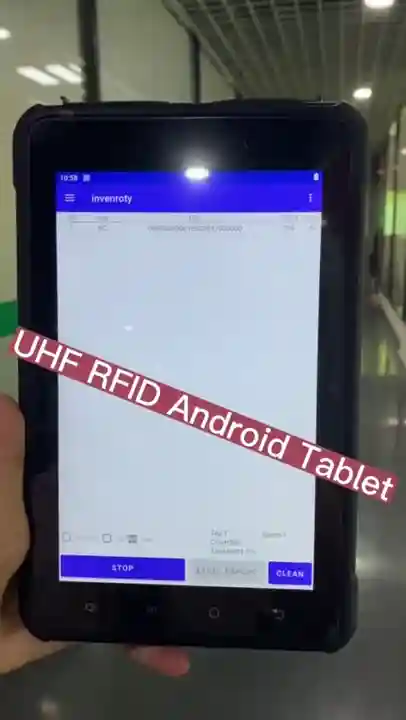

Ci-RX801 is a rugged IP67 UHF RFID android tablet, with sensitivity Indy Impinj UHF RFID chip build-in, high performance under tough environment. It is equipped with android 7.0 operation system, 8’’ rugged screen with high resolution, internal large battery of 8000mA ensure long battery life. The Table is available for 1D/2D barcode scanner(optional) and multi-protocol (HF/NFC optional) standards, shall match high standards in logistics tracking, warehouse inventory checking, smart retailing solutions etc.
CPU:Cortex A53 1.5GHz octa-core
Operation system:Android 7.0
Memory:2GB RAM / 16GB ROM; or 3GB RAM / 32GB ROM; Support max 256GB Micro SD card
Touchscreen:8.0 inch Gorilla Glass TFT-LCD with backlight, resolution 1280 * 800
Expansions (optional):1 SIM card slot, 2PSAM card slot, 1 TF card slot
Communication port:USB
GPS:Build-in A-GPS, accuracy ±5m
Color Camera:Rear 13 megapixel, front 5.0 megapixel, auto focus with LED flash
Keypads:4 TP keys, 4 function keys
WWLA:TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 7, 17, 20; WCDMA (850 / 1900 / 2100MHz); GSM / GPRS / Edge (850 / 900 / 1800 / 1900MHz)
WLAN (WIFI):2.4G / 5G dual frequency, support IEEE802.11a /b /g /n
Bluetooth:Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.2
1D laser engine:Honeywell N4313
Symbologies:All major 1D barcode
2D CMOS Imager:Honeywell N6603
Symbologies:PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal etc
Working frequency:865-868MHz or 902-928MHz
Protocol:EPC Class1 GEN2 / ISO18000-6C
Antenna gain:4dBi circular polarization build-in
Reading distance:6-8m (tag type matters)
Working frequency:13.56Mhz
Protocol:ISO15693 & ISO1443A
Reading distance:2-6cm
Working frequency:125Khz / 134.2Khz (FDX-B/HDX)
Protocol:ISO 11784 & 11785
Reading distance:2-10cm
Protocol:ISO7816
Baudrate:9600, 19200, 38400, 43000, 56000, 57600, 115200
Slot:2 slots(maximum)
Sensor:TCS1xx
Sensor type:Capacitive, area sensor
Resolution:508 DPI
Performance:FRR < 0.008%, FAT < 0.005%
Capacity:1000
Weight:600g (including battery)
Dimension:230 * 142 * 18mm
Battery:Rechargeable li-ion polymer, 3.8V, 8000 mAh
IP rating:IP67 IEC compliance, withstand 1.5m drop
ESD:±15kv air discharge, ±8kv direct discharge
Working Temperature:-20°C ~ 50°C
Storage Temperature:-40°C ~ 70°C
Standard Accessary:Lithium battery, DC Power adaptor, USB cable
Optional:Charging Cradle
