Ci-RX6000 UHF Android Portable Reader
4G
Android OS
Asset Management
Handheld RFID Reader
NFC RFID
RFID Reader
UHF

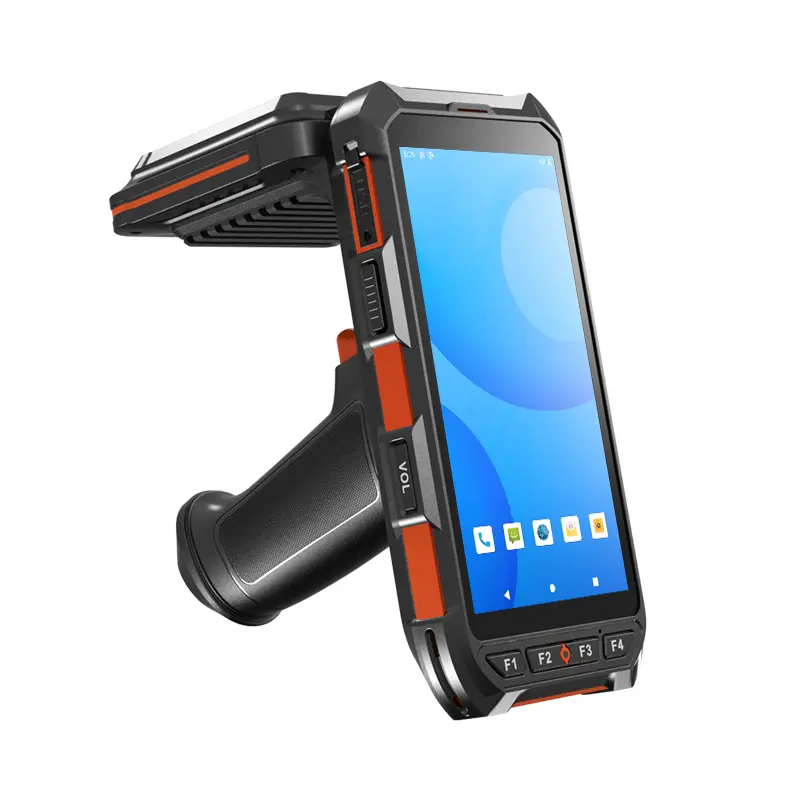

Ci-RX6000 is the newly released UHF RFID android handheld reader with sensitivity Impinj E710 chip module, RFID reading range up to 18m in open area. It is equipped with Android 13 operation system, 5.5” rugged touch screen with high resolution, is available for 1D/2D barcode scanner(optional) and multi-protocol (HF/NFC optional) standards, shall match high standards in logistics tracking, warehouse inventory checking, smart retailing etc.
Applications
Smart CityAsset & LogisticsPersonnel ManagementWarehouse ManagementWaste ManagementAuto Weighting SystemWarehouse RFID Forklift SystemRFID Parking Access Control SystemRFID Asset ManagementRFID Laundry ManagementRFID Textile ManagementRFID Time Attendance SystemRFID Tracking System For InmateRFID for Miners Management
CPU:Cortex ARM® 2.0GHz octa-core
Operation system:Android 13
Memory:3GB RAM/32GB ROM or 4GB RAM/64GB ROM, MicroSD (max 256GB expansion)
Touchscreen:Tough 5.5 in. TFT-LCD(720x1440)touch screen with backlight
Backlight:LED backlight
Expansions(optional):2 PSAM, 2 SIM, 1 TF
Communication port:Type-C
GPS:GPS (embedded A-GPS), accuracy of 5 m
Color Camera:Rear 13 megapixel, front 5.0 megapixelAuto-focus with LED flash
WWLA:TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 5,7,8,12, 17, 20; WCDMA(850/1900/2100MHz); GSM/GPRS/Edge (850/900/1800/1900MHz)
WLAN(WIFI):2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac
Bluetooth:Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.2
2D CMOS Imager:Honeywell N5703 2D Scan Engine/ Newland NLS-CM60/Newland NLS-N1
Symbologies:PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc.
Working frequency:865-868MHz or 902-928MHz
Protocol:EPC C1 GEN2/ISO 18000-6C
Antenna gain:4dBi circular polarization build-external
Reading distance:0-18m (tags and environment dependent)
Working frequency:13.56Mhz
Protocol:ISO 14443A&15693, NFC-IP1, NFC-IP2
Reading distance:2-5cm
Protocol:ISO7816
Baudrate:9600, 19200, 38400,43000, 56000, 57600, 115200
Slot:2 slots(maximum)
Weight:600g (including battery&pistol)
Dimension:171mm(H)x81mm(W)x20.4mm(D)±2 mm (without the pistol grip and UHF shield)
Battery:Rechargeable li-ion polymer, 3.8V, 7200mAh
IP rating:IP65, IEC compliance
WorkingTemperature:-20℃ to 50℃
Storage Temperature:-20℃ to 70℃
Humidity:5%RH to 95%RH(non-condensing)
Drop Specifications:5ft./1.5 m drop to concrete across the operating temperature range
ESD:±15kv air discharge, ±8kv direct discharge
Standard Accessary:1xPower Adaptor; 1xLithium Polymer Battery; 1xType-C cable
Optional:Cradle
