Ci-RI947 Compact Rugged Integrated UHF RFID Reader
RFID Reader
UHF
Middle Range RFID
Waterproof
Impinj
GPIO
Harsh Environment
High Protecting

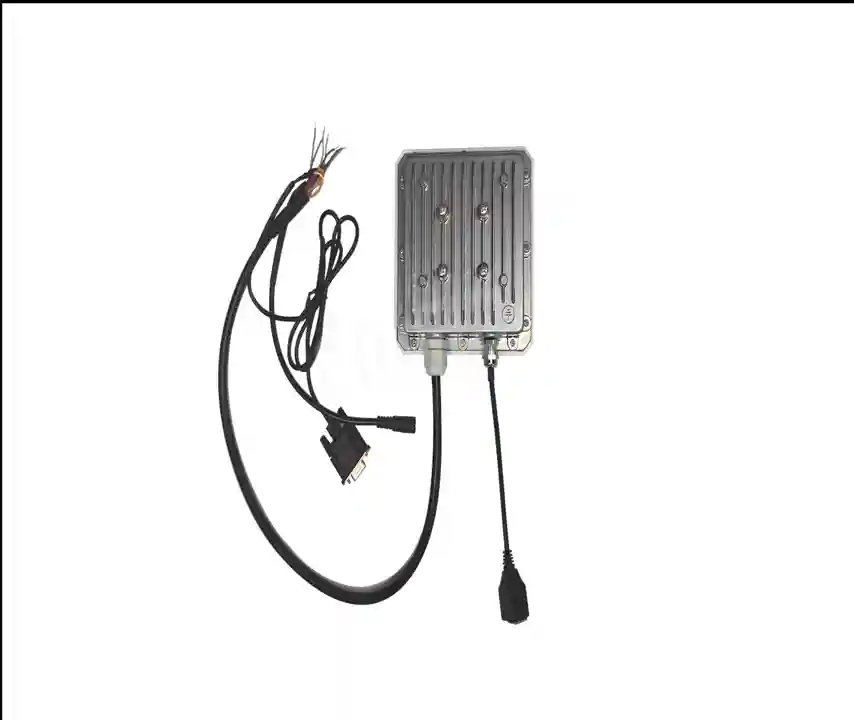

Ci-RI947 Integrated Rugged UHF RFID reader provides high performance uhf RFID Reading in tough and rugged environment, it’s based on high performance Impinj RFID chip, compact in size but big in reading distance. The reader is highly resistant to water and dust, IP67 rating suitable for tough environment.
Operating Frequency:866-868Mhz EU, 902-928Mhz FCC, 920-925Mhz China, Other frequency band customizable
Working Protocol:EPC C1 GEN2 (ISO18000-6C)
Working mode:FHSS/Fixed frequency
RF Output Power:15dBm ~ 33dBm (@1dBm per step)
Antenna gain:6dBi, circular polarization
Antenna half power angel:Horizontal 106°/ Vertical 106°
Communication interface:RJ45 (Ethernet), RS232, RS485
GPIO:2 channel relay output, 1 channel photoelectric isolation input
Reading distance:0~4m (depends on antenna and tag as well)
Material:ABS+PC / Aluminum alloy
Operating Temperature:-30°C ~ +70°C
Storage Temperature:-40°C ~ +85°C
Humidity:5% ~ 95% (non-condensing)
Waterproof:IP67
Writing distance:0~2m
Reading speed:300 pcs/s
Working Voltage:DC 12V-24V /3A
Dimensions:133 * 133 * 52 mm
Weight:1kg
