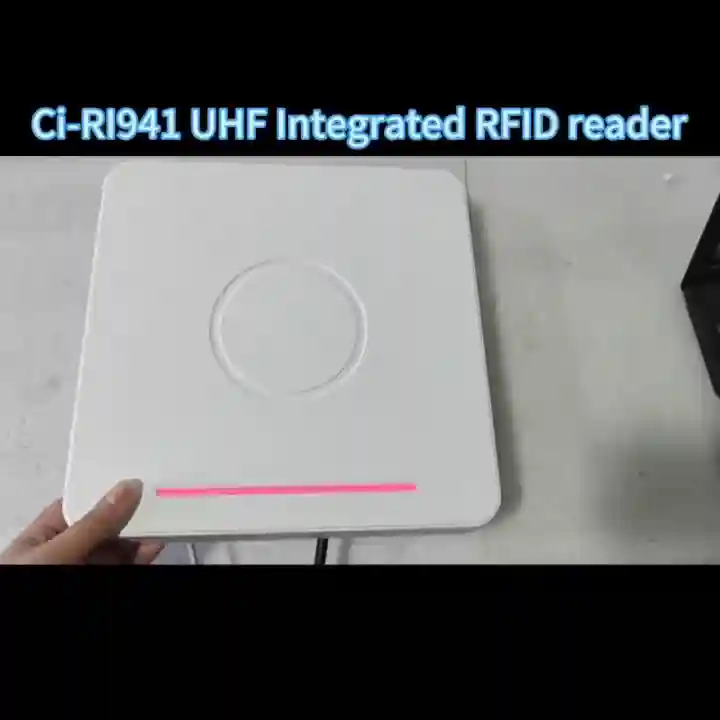

Ci-RI941 9dBi Integrated UHF RFID Reader
RFID Reader
UHF
Integrated RFID
Middle Range RFID
Circular Polarization
RFID Access Control
RFID Vehicle Management
Asset Management
4G
Ci-RI941 is an all-in-one UHF integrated Reader with buid-in dual 9dBi gain antenna, it supports multi-interfaces, long reading distance, fast reading speed, high recognition and easy to installation.
Operating Frequency:866-868Mhz EU; 902-928Mhz FCC; 920-925Mhz China; Other frequency band customizable
Working Protocol:EPC C1 GEN2(ISO18000-6C)
Working mode:FHSS/Fixed frequency
RF Output Power:5dBm~33dBm (@1dBm per step)
Antenna gain:9dBi
Communication interface:RJ45(Ethernet), RS232, RS485 / Wiegand26/34(Optional)
Wireless module(Optional):WIFI, 4G
GPIO:1 channel relay output, 1channel photoelectric isolation input
Reading distance:0~15m(depends on antenna and tag as well)
Writing distance:0~3m
Working Voltage:DC 9V~24V or POE
Power consumption:＜15W
Dimensions:290*290*82mm
Indicator lights:Red(power), Green(card reading)
Weight:2.1kg
Material:ABS
Operating Temperature:-40°C~+70°C (-40℃may cause reader performance degradation, -20℃～+70℃ is recommended)
Storage Temperature:-40℃~+85℃
Humidity:5%~95%(non-condensing)
Waterproof:IP65
