Ci-RI265 Long Range Integrated Active RFID Reader
RFID Reader
Active RFID Reader
2.4Ghz
Long Range RFID
Integrated RFID
RFID Access Control
RFID Vehicle Management
Distance Measurement
SDK-API
GPIO
Waterproof

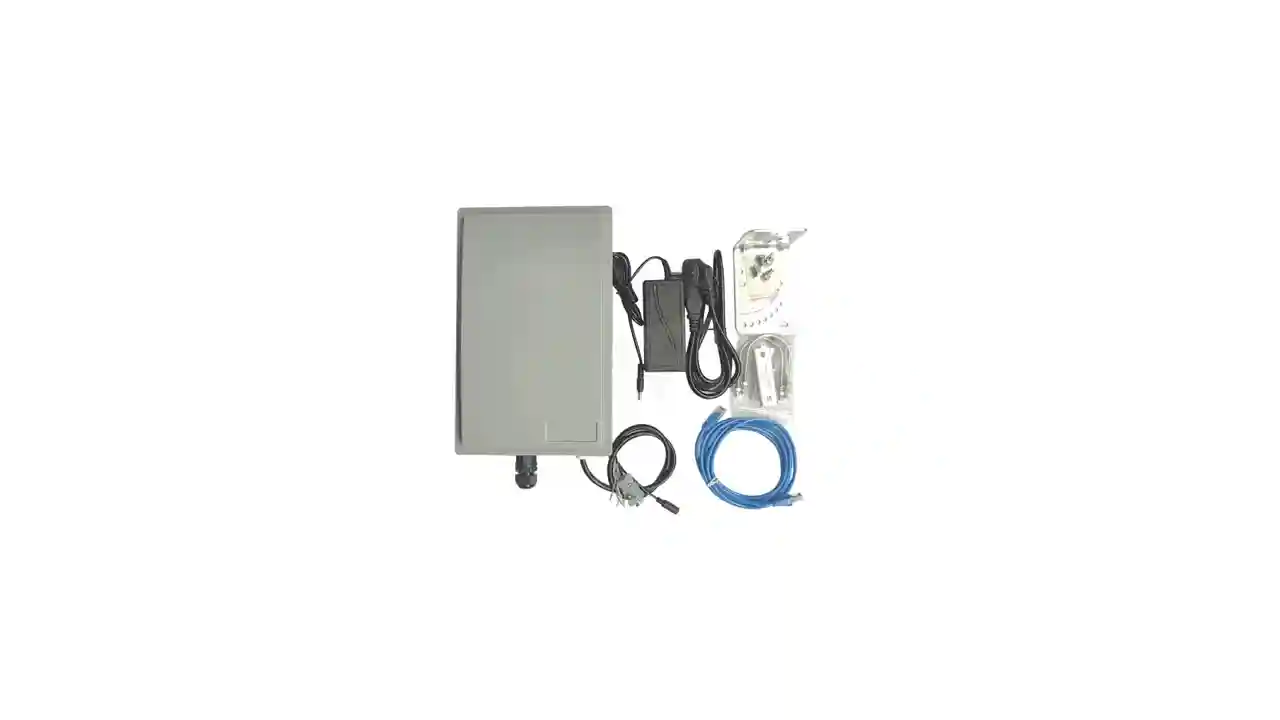

Ci-RI265 is integrated active reader with directional reading, reading range can reach 200m in open area, IP67 rating suitable for outdoor application, it is mainly used for vehicle access control, children tracking in park, personnel management etc.
Working frequency:ISM 2.4-2.48GHz
RF Output Power:Max +15dBm,step -2dB, software adjustable
Receive sensitivity:-93dBm
Antenna:Build-in 15dBi vertical polarized antenna
Antenna parameter:Hor 45-Ver 45 (Half power angle); Antenna front to back ratio ≥18dB
Data ports:RS232, Ethernet
Data ports (optional):RS485, Wiegand 26/34(customizable)
GPIO (optional):2 channel trigger(optical isolated) input (5V,<20mA); 2 channel relay output (30V,<1000mA)
Firmware upgrade:Support RS 232 connection updating with specified software
Application software:API in C++/C#
Tag protocol:Private
Reading distance:0-200m (tag type matters)
Reading speed:300pcs/s
Dimensions:320*200*75mm
Weight:1800g
Power consumption:Standby 200mw, working 400mW
Working Temperature:-30°C~+70°C
Storage Temperature:-40°C~+80°C
Humidity:5%~95%( non-condensing)
IP Rating:IP67
Installation:Wall or pole mounting
