Ci-RH273 Active RFID Android Portable Reader
2.4Ghz
4G
Active RFID Reader
Asset Management
Distance Measurement
Handheld RFID Reader
Integrated RFID
Long Range RFID
RFID Reader
SDK-API
Dual Frequency rfid portable reader

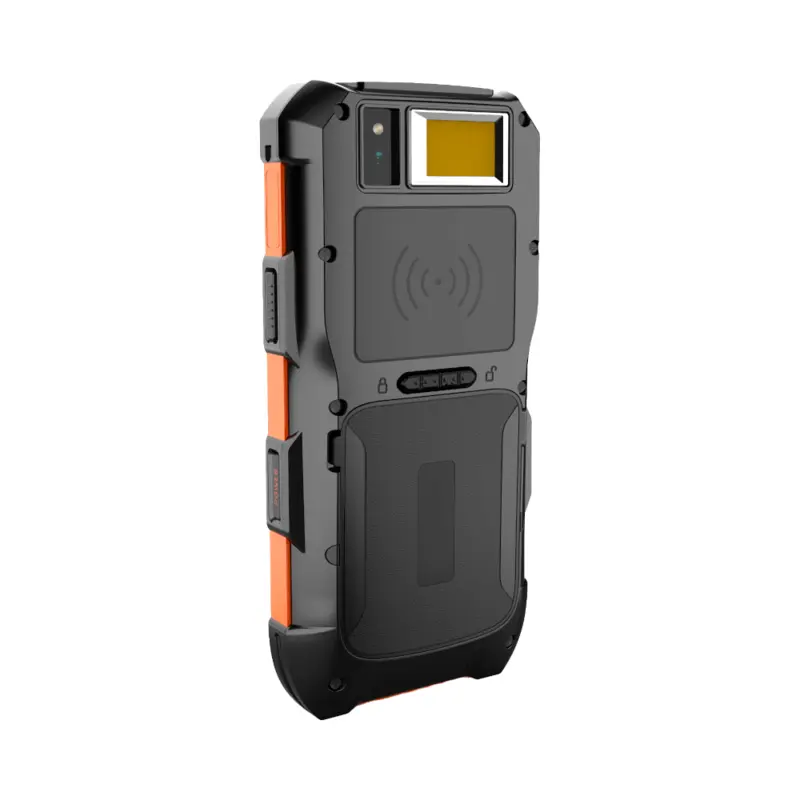

Ci-RH273 is a compact RFID android handheld PDA equipped with android 10 operation system, 5.5” rugged touch screen with high resolution. It is built in cirfid 2.4Ghz active RFID, with 60m reading distance adjustable with cirfid active tags, is available for 1D/2D barcode scanner(optional), (optional) and multi-protocol RFID standards (NFC, LF etc), shall match high standards in logistics tracking, warehouse inventory checking, smart retailing solutions etc.
CPU:Cortex-A73 2.0GHz octa-core
Operation system:Android 10.0
Memory:3GB RAM / 32GB ROM; or 4GB RAM / 64GB ROM; Support max 256GB Micro SD card
Touchscreen:5.5 inch Gorilla Glass TFT-LCD with backlight, resolution 720*1440
Expansions(optional):2 SIM card slot, 2 PSAM card slot, 1 TF card slot
Communication port:Type-C
GPS:Build-in A-GPS, accuracy of ±5m
Color Camera:Rear 13 megapixel, front 5.0 megapixel, auto focus with LED flash
WWLA:DD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 7, 17, 20; WCDMA(850/1900/2100MHz); GSM/GPRS/Edge (850/900/1800/1900MHz)
WLAN(WIFI):2.4G/5G dual frequency, support IEEE802.11a/b/g/n/ac
Bluetooth:Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.2
2D CMOS Imager:Honeywell N6703/ or Newland NLS-CM60/ NLS-N1
Symbologies:PDF417, MicroPDF417, Composite, RSS, TLC-39,Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes,US PostNet,US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal etc
Working frequency:2.4~2.48Ghz ISM band
Protocol:Private
Antenna:Build-in
Reading distance:Up to 60m adjustable (related to relevant RF power and active tags)
Working frequency:13.56Mhz
Protocol:ISO1443A&15693, NFC-IP1, NFC-IP2
Reading distance:2-5cm
Working frequency:125Khz/134.2Khz(FDX-B/HDX)
Protocol:ISO 11784&11785
Reading distance:2-10cm
Protocol:ISO7816
Baudrate:9600, 19200, 38400,43000, 56000, 57600, 115200
Slot:2 slots(maximum)
Sensor:TCS1xx
Sensor type:Capacitive, area sensor
Resolution:508 DPI
Performance:FRR<0.008%, FAT<0.005%
Capacity:1000
Weight:400g (including battery)
Dimension:170.8(H)*81(W)*28.6(D) mm
Battery:Rechargeable li-ion polymer, 3.8V, 4800mAh
IP rating:IP65, IEC compliance, withstand 1.5m drop
Working Temperature:-20°C ~ 50°C
Storage Temperature:-40°C ~ 70°C
Standard Accessary:Lithium battery, DC Power adaptor, type-C data cable
Optional:Cradle; bag
