Ci-RD942 Self-Service Desktop UHF RFID Reader
UHF RFID Reader
RFID Reader Writer
RFID Card Reader
RFID Workstation

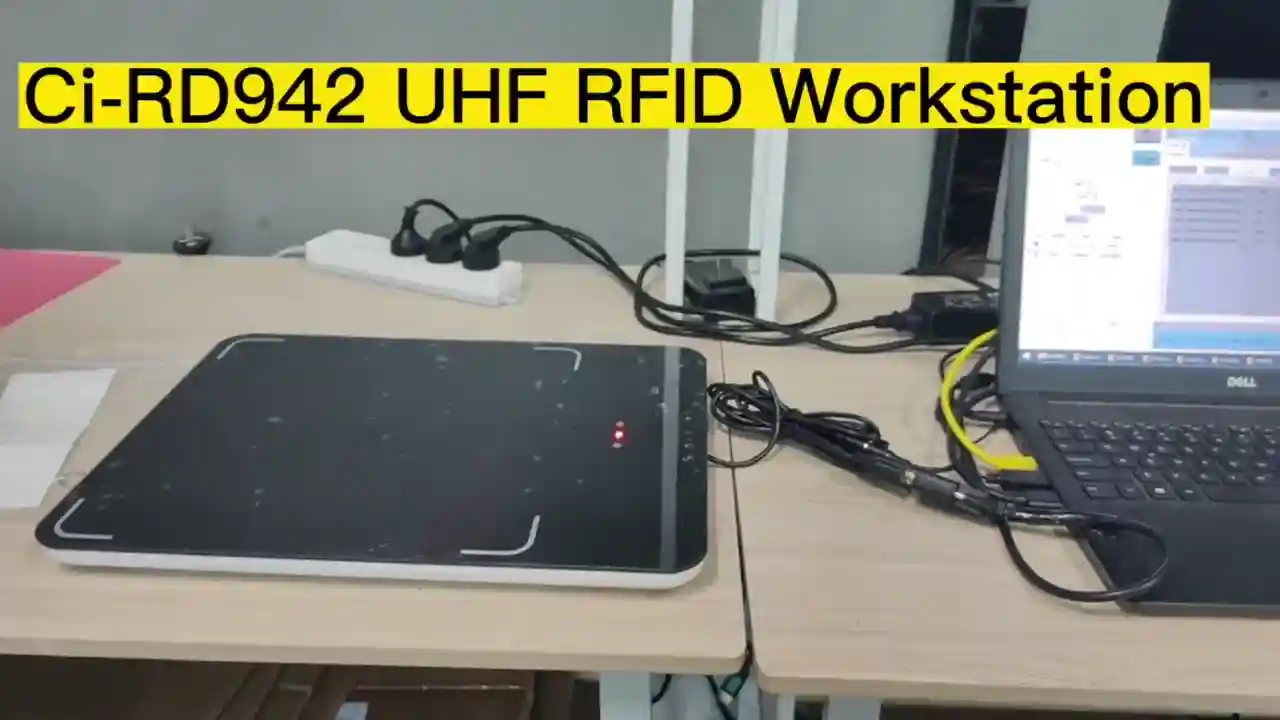

Ci-RD942 UHF RFID reader writer is designed for dense desktop reading in self-service solutions. It is build-in with circular polarization antenna, super low profile with no surface reading dead spots, provides reliable tag reading &writing in restricted but dense zone.
Operating Frequency:866-868Mhz EU; 902-928Mhz FCC; Other frequency band customizable
Working Protocol:EPC C1 GEN2(ISO18000-6C)
Working mode:FHSS/Fixed frequency，adjustable by software
Antenna gain:3dBi, circular polarization
RF output power:15dBm~30dBm (@1dBm per step)
Communication interface:RS232
RSSI detection:Support
Reading distance:0~3m (depends on tag as well)
Indicator light:3 LED indicators
Working Voltage:DC 12V/3A
Dimension:393* 330* 20mm (L× W× H)
Weight:1.6kg
Material:Engineering plastic + tempered glass
Working temperature:-20℃~ 60℃
Storage temperature:-40℃~ 85℃
Humidity:5%~ 95% (non-condensing)
Waterproof:IP54
