Ci-RD940 UHF Desktop Reader

RFID Card Reader
RFID Reader Writer
RFID Workstation
UHF RFID Reader

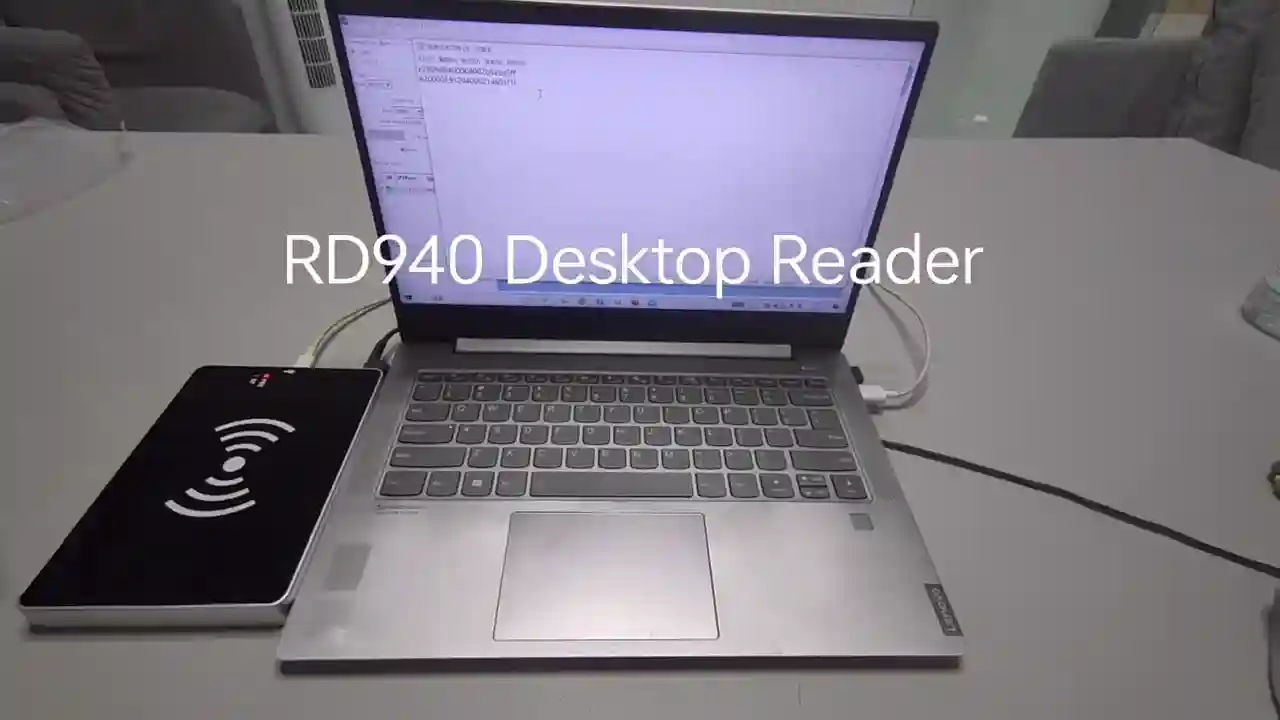

Ci-RD940 UHF desktop reader writer is designed for desktop reading/writing and uhf tags authorization. It has small mini dimension and provides reliable tag reading &writing in asset management, personal management and access control etc.
Applications
Smart CityAsset & LogisticsPersonnel ManagementWarehouse ManagementWaste ManagementAuto Weighting SystemWarehouse RFID Forklift SystemRFID Asset ManagementRFID Laundry ManagementRFID Textile ManagementRFID Time Attendance SystemRFID System for Construction Site Safety
  • UHF frequency band, support EPC Class1 GEN2 protocol (ISO18000-6C)
  • Reliable performance and cost effective
  • Power by USB, switchable between keyboard output mode &software connection mode
  • Reading distance range to 80cm, writing distance range 10cm
Operating Frequency:866-868Mhz EU; 902-928Mhz FCC; Other frequency band customizable
Working Protocol:EPC C1 GEN2(ISO18000-6C)
Working mode:FHSS/Fixed frequency
RF Output Power:5dBm～27dBm (@1dBm per step)
Antenna gain:0dBi, circular polarization
Communication interface:USB Type-C, Support virtual serial port and HID keyboard
Reading distance:0~80cm (depends on tag as well)
Writing distance:0~10cm
Power consumption:Max 760mA@5V
Working Voltage:Power by USB
Dimensions:170*120*17mm
Weight:292g
Material:Aluminum alloy + acrylic
Operating Temperature:-20℃～+60℃
Storage Temperature:-40℃～+85℃
Humidity:5%~95%(non-condensing)
Waterproof:IP44
