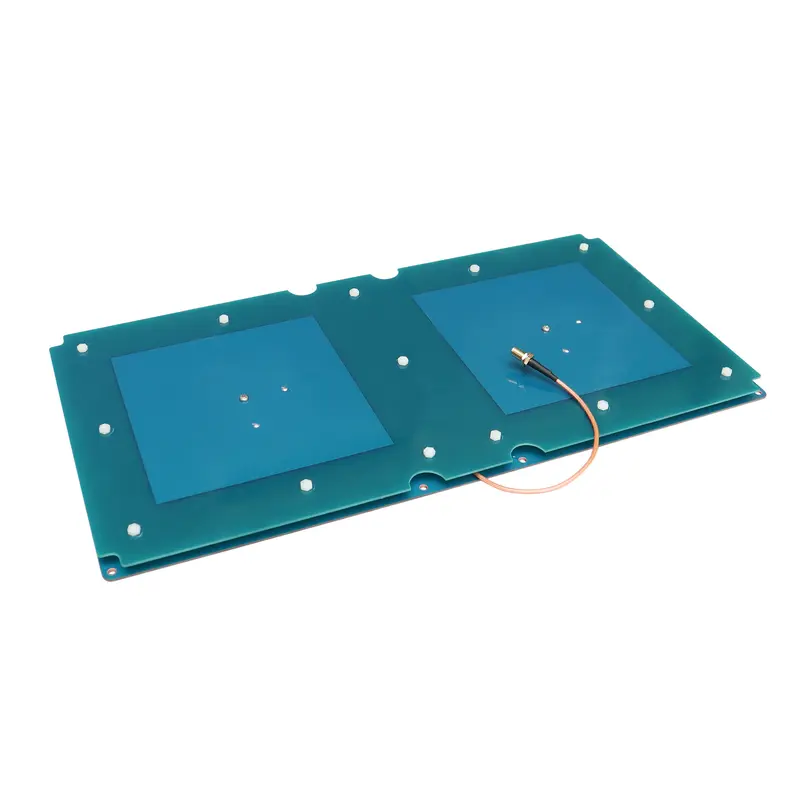

Ci-A920 9dBi Narrow Beam Antenna
narrow beam antenna
Desktop RFID
UHF RFID Antenna
Ci-A920 is a high-performance 9dBi circular polarized narrow beam antenna, which can be read in a specific small angle, and can be conveniently applied to UHF frequency band RFID occasions such as access control, cabinets, warehousing and logistics, and retail.
Frequency:840-960MHz
Gain:9dBi
Beam width:Hor 40° Ver 70°
Polarization:Circular
VSWR:≤1.3
Impedance:50Ω
Maximum power:50W
Lightning protection:DC Ground
Connector:SMA-Female
Dimension:400*200*14mm
Net weight:0.51kg
Material:FR4
Color:Green
Operating temperature:-40-55℃
